Your gateway to the Internet of Things!

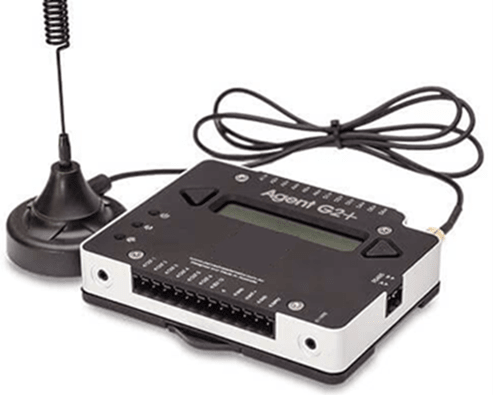

Our IoT Gateways are remote telemetry, monitoring and control devices that come pre-integrated to irrGATEway, able to read sensor interfaces and control connected devices.
Our IoT gateways connect to the cloud via secure cellular communication, and the best part…..? There’s no complex code to write, so you’ll be up and running in minutes, not months!
Internet Ready
The on-board web server gives you access from any browser, no local computer required.
On-Board Modem
Next G on-board modem connects seamlessly and is supported under our managed service.
Local Control
Multiple digital outputs and inputs including pulse, voltage and SDI 12 are supported.
Solar or Mains Powered
Optimised for solar powered sites, the Gateway can operate on AC or DC power supplies.
2-Wire Decoders
Buried 2-wire technology is easily expandable and ensure all of your control equipment is protected.
Wireless Nodes
Utilising a secure private network, it's easy to replace ageing system with our solar powered wireless nodes.

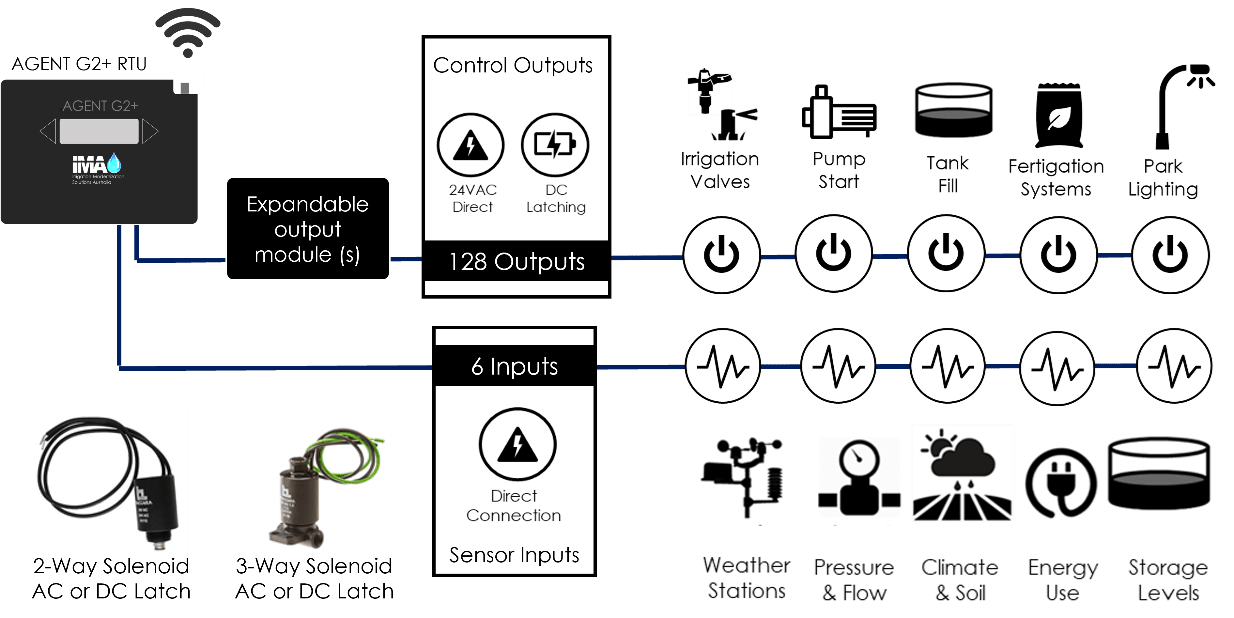

Direct Wire Connections
The IoT Gateway connects directly to most solenoid actuators that are found on popular brands of control valves, also with any commercially available relays that can accept AC or DC Latching inputs, and will connect to sensors with a range of input protocols including closed contact, 0-5v, 4-20mA, SDI-12 and MODbus.
2-Wire Decoder Connections
The IoT Gateway supports 2-wire decoder connections and can be used with both control outputs and sensor inputs on the same wire pathway, using the worlds most reliable decoder system from Crysberg.

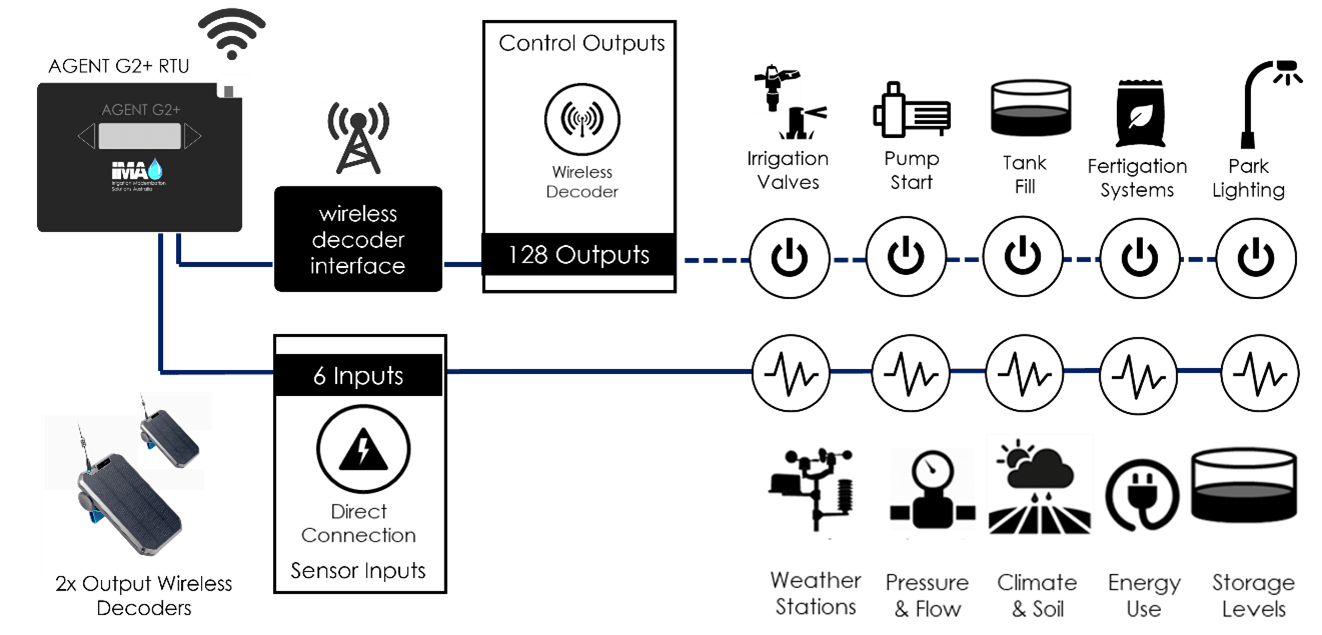

Wireless Connections
The IoT Gateway supports wireless decoder connections for control outputs in addition to or in conjuction with the direct connections available using the private wireless network with a stable range of around 3km.

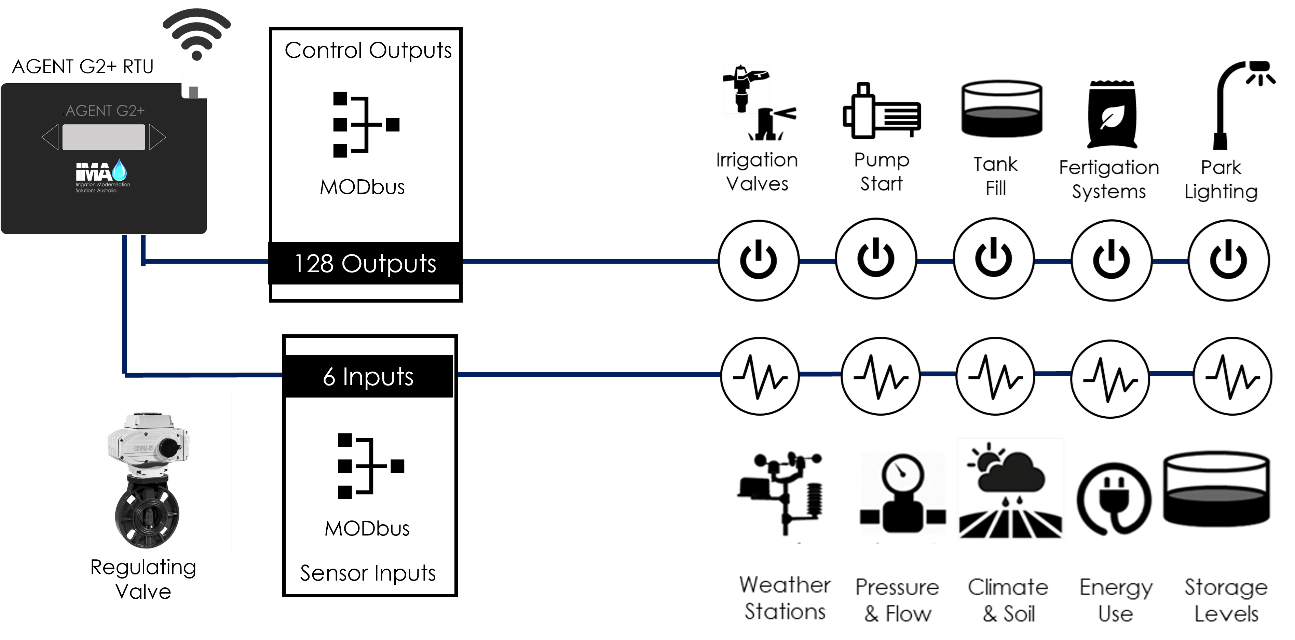

RS485 Connections
The IoT Gateway supports MODbus connections for use with more complex applications of control or montitoring with a wide range of compatiabe devices, and can be used in conjunction with other methods of field connections.
